Dispersion Compensation Grating Filtre

In optical fibre telecommunication systems, the chromatic dispersion effects must be corrected for data rates of 10Gb/s or more. O/E Land has applied its expertise in fibre Bragg gratings to offer the dispersion compensation grating filtres, with model number OEDCG-100, to correct for chromatic dispersion. The dispersion compensation grating filtre features a compact size, small insertion loss and customized dispersion slope. Our unique fiber grating apodization technology enables us to fabricate dispersion compensation grating filters with high isolation, low side lobes and low ripples. The figure below is the reflection spectrum of our dispersion compensation grating filtre.

All fiber gratings are tested to assure they conform to the highest quality standards. Technical support is available to meet every customer specific applications: from prototype development to full product manufacturing.

Features:

• Center wavelength on ITU grid
• Athermal package
• Full engineering support

Specifications of OEDCG-100:



Parameter	Unit	Value
Wavelength	nm	1520 - 1565
Dispersion compensation	ps/nm	700 - 1400
FWHM Bandwidth	nm	1.0 - 0.5
Ripple	ps	± 20
Insertion loss	dB	< 0.5

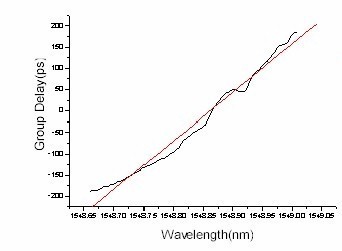

Figure 1: Dispersion curve of OEDCG-100

Figure 2: Dispersion compensation fiber grating with athermal package

To manufacture and market fiber Bragg grating products, you need a fiber Bragg grating license. O/E LAND INC. has full License Agreement from CRC/UTC Fiber Bragg Grating Technologies Portfolio. Customers who use fiber Bragg gratings or incorporate fiber Bragg gratings with their own products must buy fiber Bragg grating from a manufacturer having a fiber Bragg grating license.
