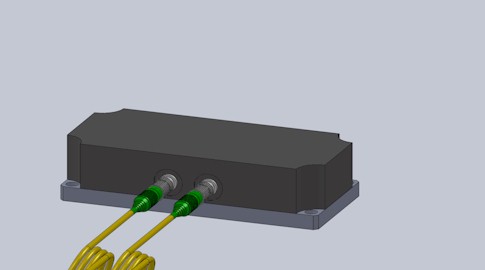

Fast Tunable Fibre Bragg Grating

Features:

Applications:

Specifications:


Parameter Unit Value
Working wavelength nm 500 - 2000
Filtre bandwidth )FWHM) nm < 0.2
Scanning speed kHz 0 - 2
Insertion loss dB < 0.5
Reflectivity % 10 - 99
Fibre type - SM or PM
Connector - FC/PC, FC/APC
Operating temperature °C 0 - 50
Storage temperature °C 0 - 70




Note: All specifications are subject to change without notice.
