12.5/G25G/50G/100G/200G DWDM Fiber Bragg Grating

DWDM fiber gratings filter have gained more attentions because of their flat top and steep spectrum slope. With our unique apodization mask technology and our world class FBG writing technology, DWDM fiber grating filters have been made with 30 dB (up to 34 dB) isolation and with a bandwidth of less than 0.8nm (100 GHz), 0.4nm (50 GHz) and 0.2nm (25 GHz) at -25dB (up to -30 dB). Our high quality DWDM fiber grating filter is the best in the industry and shows that it is ideal for 100 GHz, 50 GHz and 25 GHz DWDM system applications.

With our patented athermal package technology, we can make temperature compensated fiber grating package with low cost, high reliability and short packaging time.

Applications

DWDM grating filters can be used as an add or drop filter in DWDM systems. They can also be used as part of a multiplexer or demultiplexer.

Features

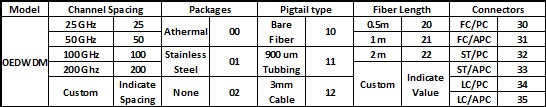

Model Number Channel Spacing
OEDWDM-200 200 GHz
OEDWDM-100 100 GHz
OEDWDM-050 50 GHz
OEDWDM-025 25 GHz
OEDWDM-012 12.5 GHz

Specifications


Parameter Unit Value
Wavelength nm 1520 - 1675
Reflection Bandwidth (@ -25 dB) nm < 1.2 (200 GHz) < 0.8 (100 GHz), < 0.4 (50 GHz), < 0.2 (25 GHz), < 0.1 (12.5 GHz)
Isolation dB > 25
Wavelength Accuracy nm ± 0.02, ± 0.01

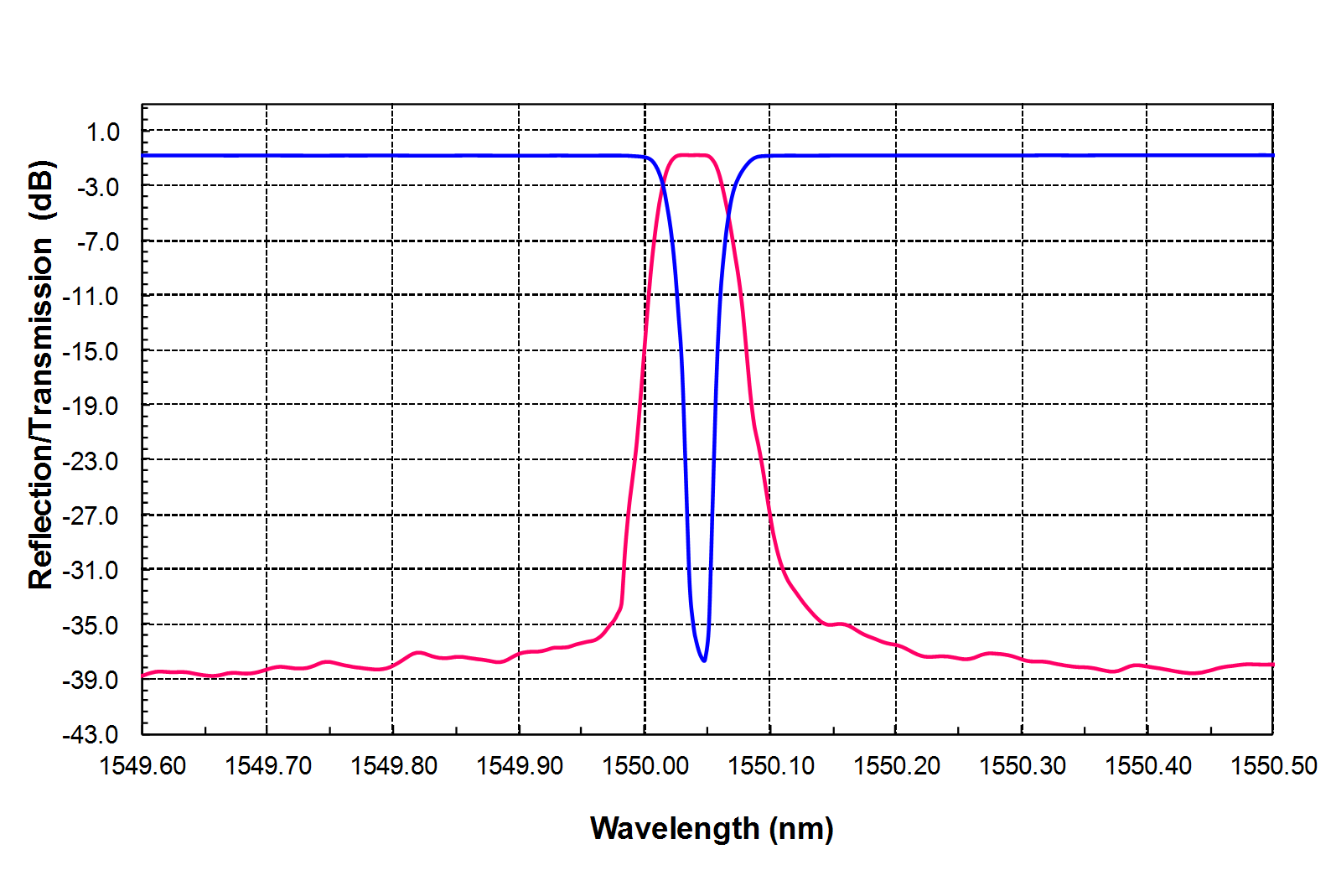

OEDWDM-012 (12.5GHz DWDM FBG)

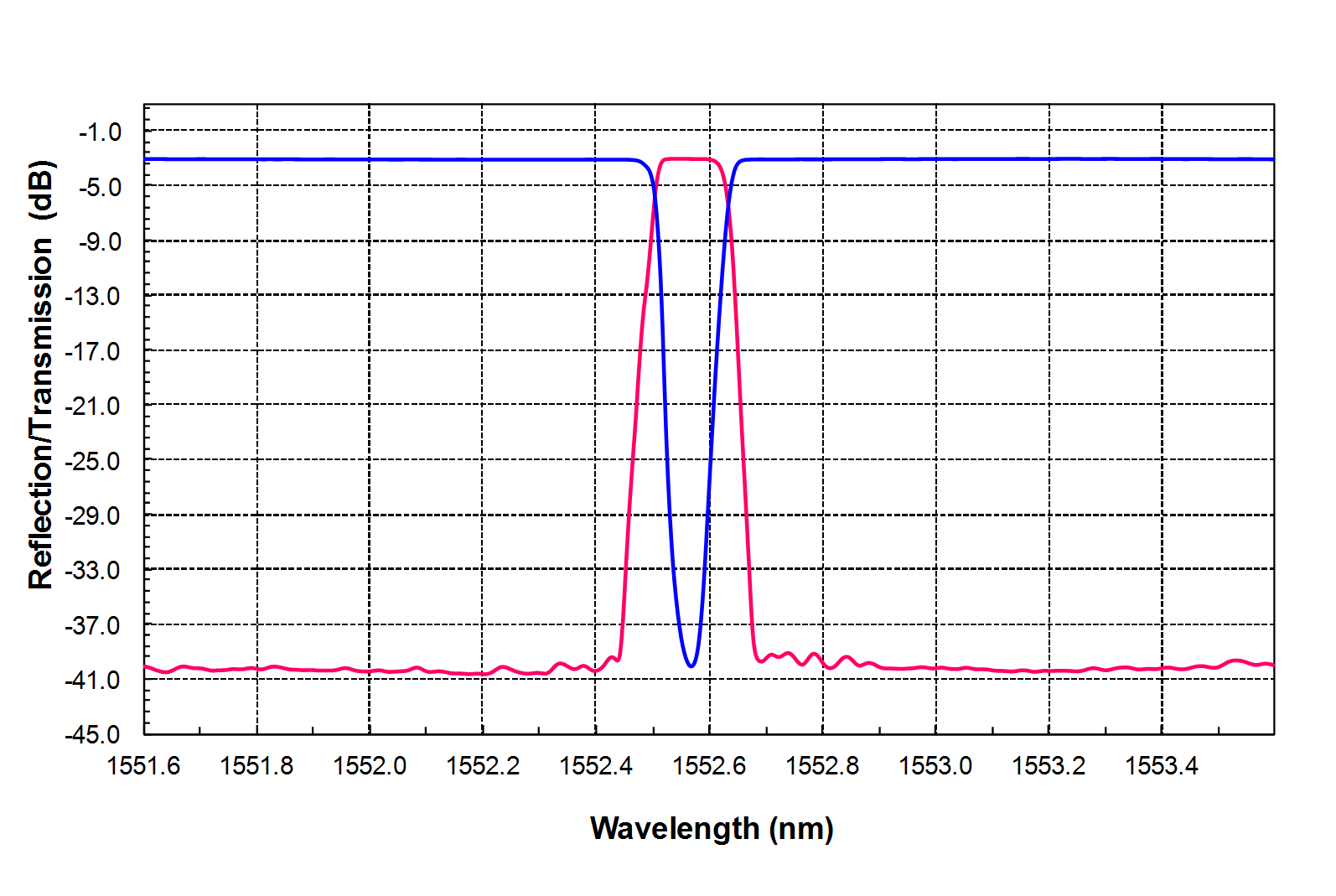

OEDWDM-025 (25GHz DWDM FBG)

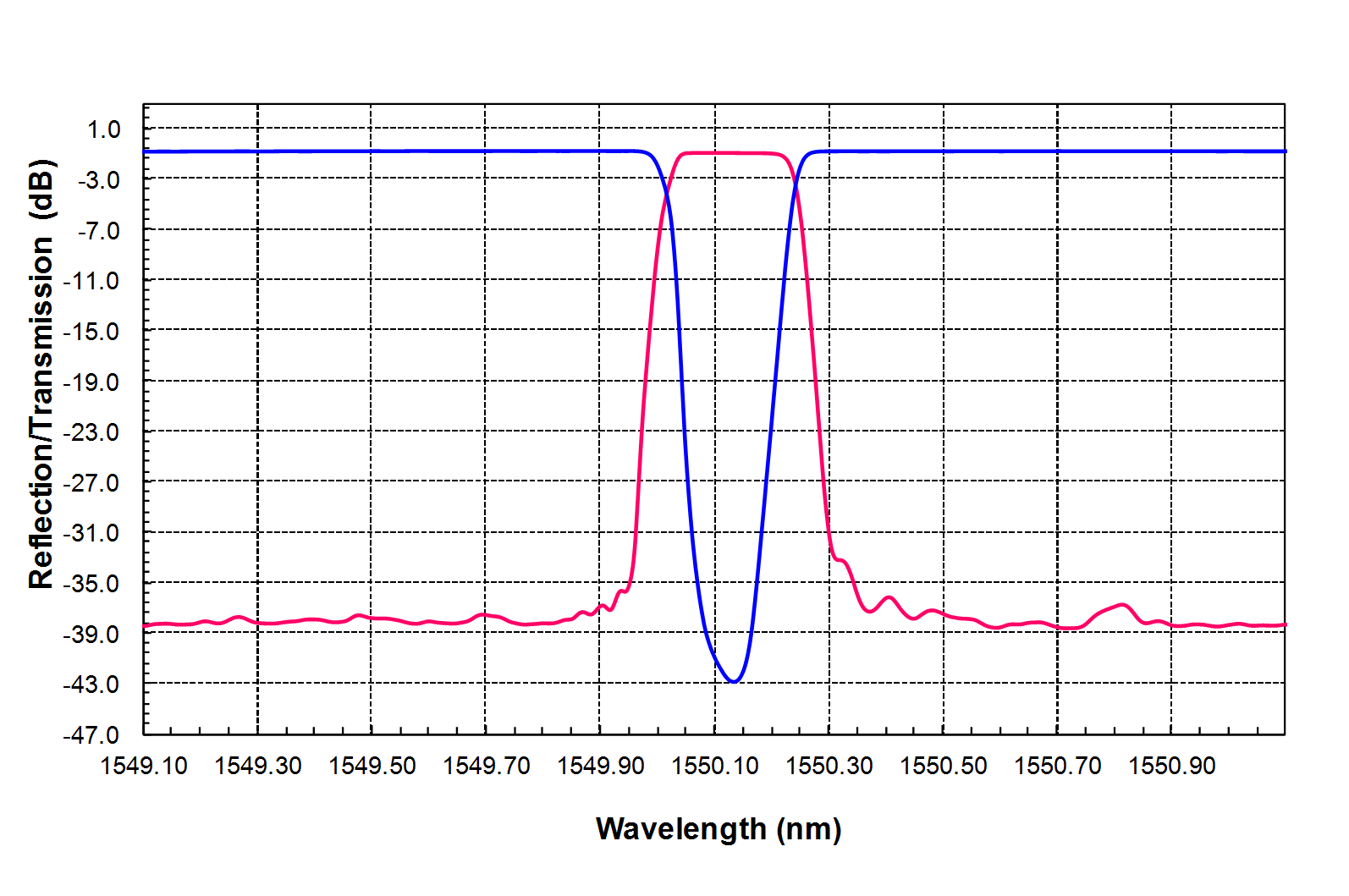

OEDWDM-050 (50GHz DWDM FBG)

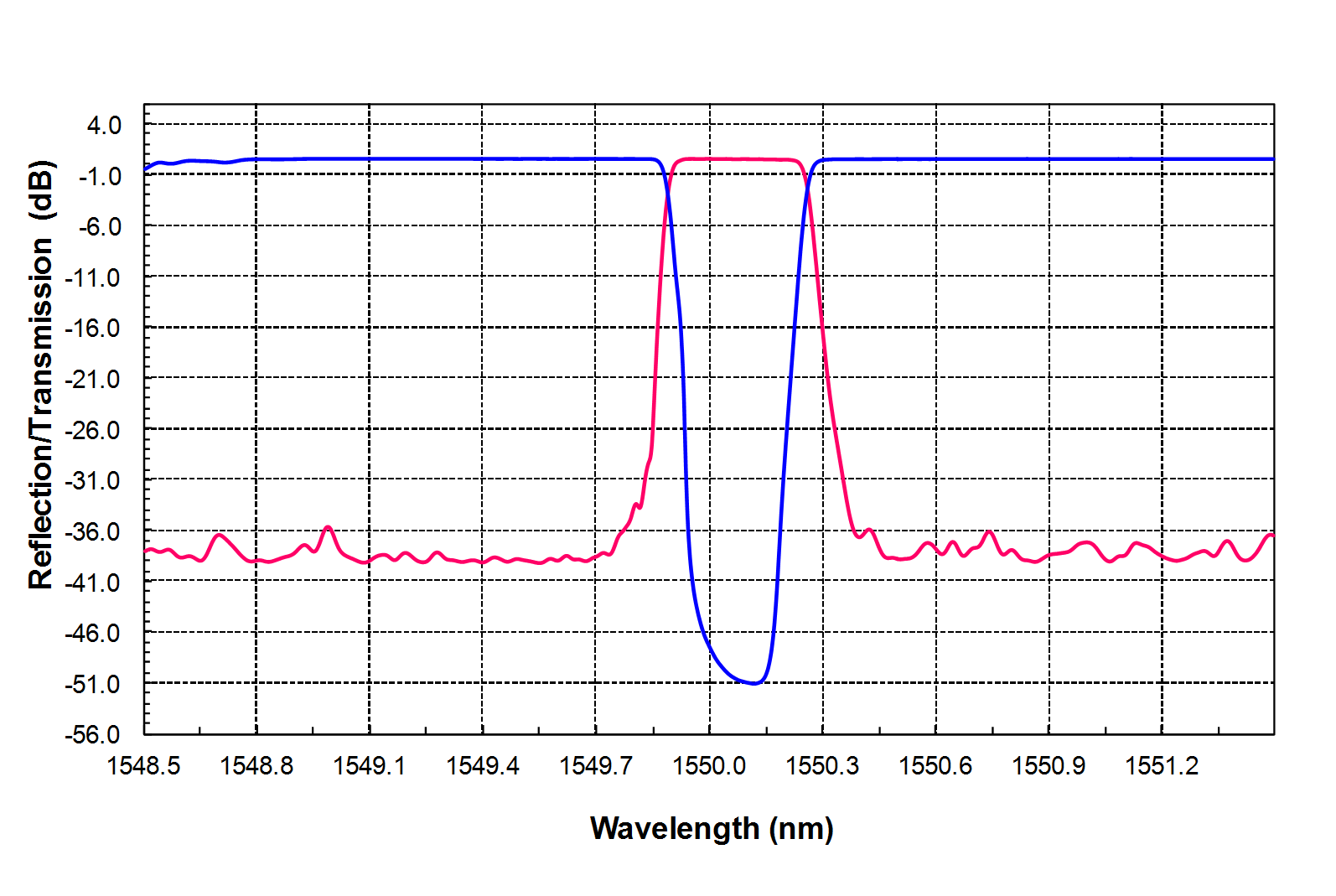

OEDWDM-100 (100GHz DWDM FBG)

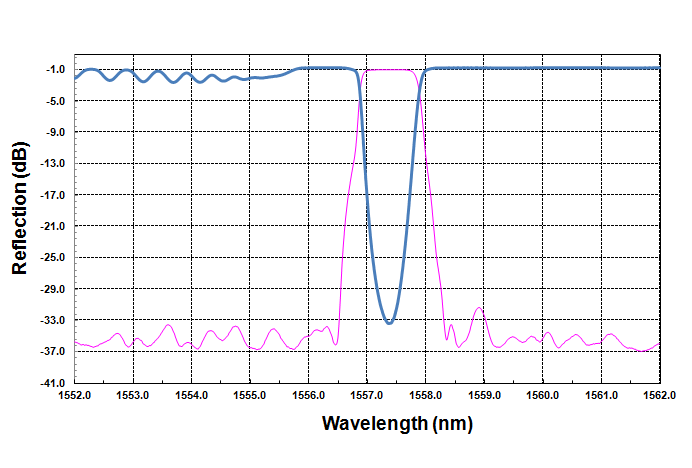

OEDWDM-200 (200GHz DWDM FBG)


O/E LAND INC. has full License Agreement from CRC/UTC Fiber Bragg Grating Technologies Portfolio. Customers who use fiber Bragg gratings or incorporate fiber Bragg gratings with their own products must buy fiber Bragg grating from a manufacturer having a fiber Bragg grating license.


Note: All specifications are subject to change without notice
