2 μm Broadband Fiber Sources (Standard)


The fibre mid-infrared broadband light source (CW) with model number OEIBS-100 (turn key solution) works in the 2 μm wavelength ranges. It is an fiber based ASE broadbandlight source with output power from a few mW to several hundreds of mW. This product can be used for testing mid infrared fiber optics components, or for gas sensing as well as for biomedical applications.

Applications

Specifications of OEIBS-100-2um


Parameter Unit Value
Center Wavelength μ m 1900-2050
Bandwidth at -10 dB nm > 90
Output power mW > 20
Operation Mode - CW
Fibre Type - SM2000
Operating Temperature °C -20 - +60
Storage Temperature °C -40 - +85
Package Size (OEM) (W x H x L) mm 60 x 50 x 100
Package Size (Turn Key) (W x H x L) mm 250 x 150 x 250

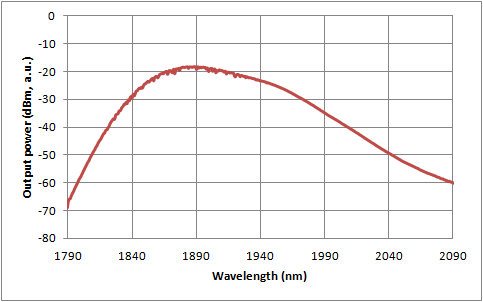

Figure 1: OEIBS-100-1900 Central wavelength 1900 nm

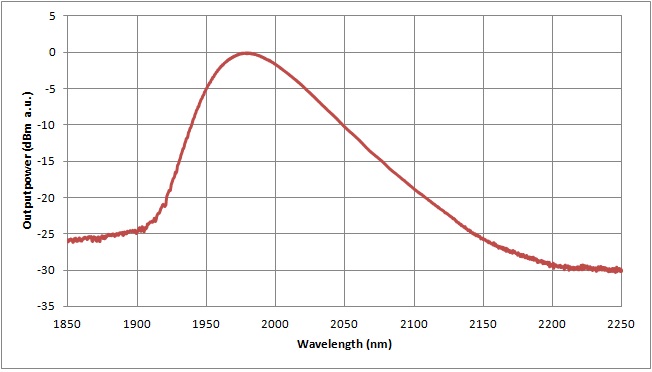

Figure 2: OEIBS-100-1950 Central wavelength 1950 nm

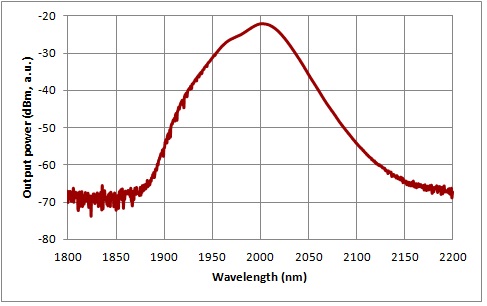

Figure 3: OEIBS-100-1950 Central wavelength 2000 nm


Note: All specifications are subject to change without notice
