Low Cost 2 μm Fibre Source

(1920 nm - 2020 nm)

Low cost 2 μm fibre source with model number OEMIS-5000-LowCost is now available. Based on our advanced fibre optics and mid infrared component technology, OEMIS-5000-LowCost is targeting sensor and biomedical applications. With many good specs like narrow bandwidth, stable wavelength, and most importantly, cost effective, makes the 2 μm fiber source an attractive module for OEM product.

Applications:

Specifications:


Parameter Unit Value
Central wavelength nm 1920 - 2020
FWHM nm < 0.5
SMSR dB > 40
Output power mW 20 - 300
Operation mode - Continuous wave
Output fibre - SMF1950
Polarization - Unpolarized
Output port - Pigtailed, receptacle
Connector - FC/APC
Operating temperature °C 0 - +70
Dimensions (OEM) mm 120 x 180 x 50
Weight kg < 1.5

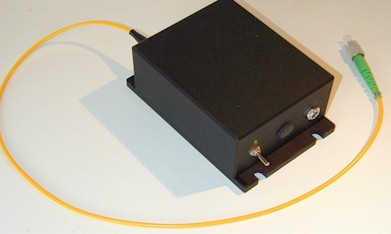

Figure 1: Low Cost 2 μm fibre laser source


Note: All specifications are subject to change without notice
