Free Space Fibre Connection with high power Attenuator

Do you constantly fibre connectors all the time when you work with high power laser sources? If your answer is "Yes", we have a solution for you.

A new product called "Free Space Fibre Optic Connection with Attenuator," with model number OEFFC-100 and with built-in attenuator and FC/APC to FC/PC receptacle connectors, can be used to build a free space connection for high power light sources. Many optical scientists and engineers are facing the problem of burnt fibre connectors.
OEFFC-100 can solve this problem by connecting two fiber connectors with a free space connection and keep these two fibre connectors at some distance to avoid burns caused by dust. These two fibre connectors could be both FC/PC and FC/APC or one FC/PC and one FC/APC.

Another advantage is that this free space fibre connection has a built-in attenuator to attenuate the light intensity and to protect your component and parts.

Figure 1: Free Space Fibre Connection with built-in Attenuator, one FC/PC and one FC/APC

Specifications of OEFFC-100:


Parameter Unit Value
Attenuation dB 0 - 20
Dimensions mm 90 x 45 x 75 (L x W x H)
Beam Size mm ≤ 1.0
Beam Centre Height mm 30
Working Wavelength nm 300 - 2500
Connector Type - FC/PC, FC/APC
Working Temperature °C 0 - 60
Storage Temperature °C -20 - + 80
Power Handling mW <500mW

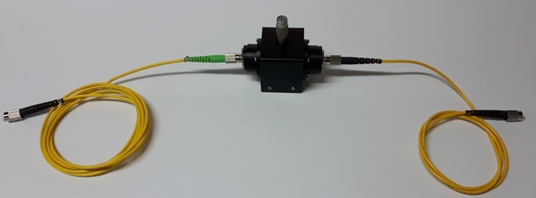

Figure 2: Fibre pigtail with high power handling, one FC/PC and one FC/APC

Specifications of OEFFC-200:


Parameter Unit Value
Attenuation dB 0 - 20
Dimensions mm 90 x 45 x 75 (L x W x H)
Beam Size mm ≤ 1.0
Beam Centre Height mm 30
Working Wavelength nm 300 - 2500
Connector Type - FC/PC, FC/APC
Working Temperature °C 0 - 60
Storage Temperature °C -20 - + 80
Power Handling mW <20 W

Note: All specifications are subject to change without notice
