Standard Temperature Fibre Bragg Grating Sensor

New, low cost fibre grating temperature sensors are now available at O/E LAND INC. Based on our new design, these new fibre grating temperature sensors can be widely used in construction, aerospace, electrical, petrochemical, biomedical, nuclear power stations and other industrial applications. The OETMS-100 has stainless steel body for harsh environments, the OETMS-200 with Teflon material and the OETMS-300 with ceramic material are suitable for non metal applications like high voltage transformer, micro wave and strong electromagnetic fields, as well as high temperature applications.

The fibre cable can be packaged with armored cable (or other type of cables, for example, Teflon cable) to protect from damage in a harsh environments like rust, shock, corrosion, vibration, and sharp mechanical object.

Model number: OETMS-100A, OETMS-100B

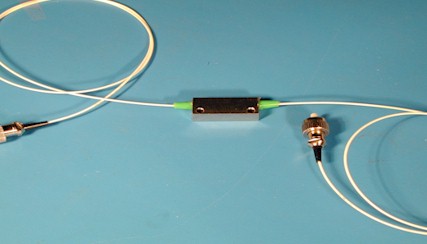

Figure 1: Fibre Bragg Grating Temperature Sensor OETMS-100A

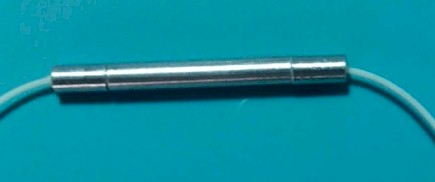

Figure 2: Fibre Bragg Grating Temperature Sensor OETMS-100B

Specifications of OETMS-100A and OETMS-100B:


Parameter Unit Value
OETMS-100A OETMS-100B
Range °C -50 - +120
Resolution °C 0.1 (standard)
Precision °C ± 0.5
Size mm 10 x 25 x 6 (Weight x Length x Height) 4 x 30 (Diameter x Length)
Material - Stainless steel
Fibre cable - 900 µm, 3 mm 3 mm

Model number: OETMS-200

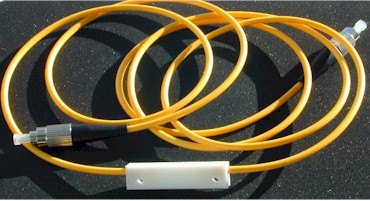

Figure 3: Fibre Bragg Grating Temperature Sensor in PTFE

Specifications of OETMS-200:


Parameter Unit Value
Range °C -50 - +120
Resolution °C 0.1
Precision °C ± 0.3
Size mm 10 x 45 x 6.5(custom size available)
Material - PTFE(Teflon)
Fibre cable - 3 mm

Model number: OETMS-300

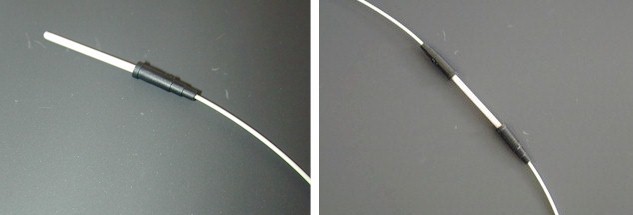

ab Figure 4: Fibre Temperature Sensor in Ceramic, a). Reflection type,
b). Transmission type
ab Figure 4: Fibre Temperature Sensor in Ceramic, a). Reflection type,
b). Transmission type

Specifications of OETMS-300:


Parameter Unit Value
Range °C -50 - +120
Resolution °C 0.1
Precision °C ± 0.3
Size mm 2 x 30, 4 x 30, 6 x 30 (diameter x length) or custom size
Material - Ceramic
Fibre cable - 900 µm

Applications:

Fibre Bragg grating temperature sensors with any wavelength can be delivered in a short time. Low cost product, quick delivery time, high reliability and good performance are our products' main features.


Note: All specifications are subject to change without notice
