Wavelength Stabilized Fiber Coupled Laser Diodes

With our advanced fiber Bragg grating technology and laser diode package technology we can provide wavelength stabilized fiber coupled laser diodes. This product, with model number OEFLD-200, is featured with compact size, narrow linewidth and stable center wavelength performance. This will be an ideal componet for applications like Raman spectroscopy, instrumentation, testing and measurement etc.

Features

Applications

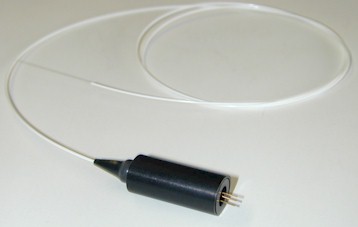

Figure 1: Wavelength-stabilized fiber-pigtailed laser diode in aluminium package

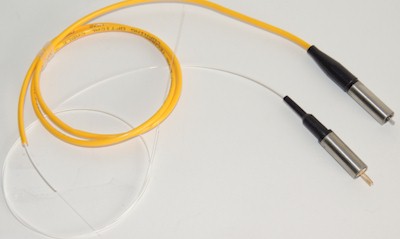

Figure 2: Wavelength-stabilized fiber-pigtailed laser diode in stainless steel package

Specifications:


Parameter Value Unit
Output power Up to 100 mW
Center Wavelength 630, 650, 780, 808, 980, 1030, 1060, 1550 or custom nm
Bandwidth <0.1 nm
Fiber type SM, PM, MM -
Connector (optional) FC/PC, FC/APC, SMA, ST -
Package type Aluminium, Stainless Steel /s -
Package size 9 x 30 (diameter x length) mm
Operating temperature 15-40 °C


Note: All specifications are subject to change without notice
