Fiber Coupled Laser Diodes

OEFLD-100 is a low-cost fiber coupled laser diode, available in wide range of wavelength of operation and other specs. Using our advanced laser diode package technology, this component comes in a compact package with stable performance. Customer has option to choose fiber type, laser type etc.

Features

Applications

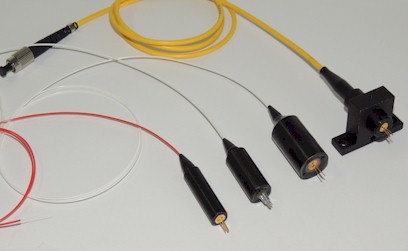

Figure 1: Fiber-pigtailed laser diode in aluminium package


Specifications:


Parameter Value Unit
Output power Up to 100 mW
Center Wavelength 200-3000 nm
Laser type FP, DFB, VCSEL -
Fiber type SM, PM, MM -
Connector (optional) FC/PC, FC/APC, SMA, ST -
Package type Aluminium, Stainless Steel /s -
Package size 9 x 30, other mm
Operating temperature 15-40 °C


Note: All specifications are subject to change without notice
