Low-cost Femtosecond Fibre Laser OEFFL-100
Targeting industrial, research and bio-medical applications we release a femto-second fiber lasers around 1560 nm wavelength range. Standard of fully customized solutions are available for this is a low-cost and compact system. Ideal for ultra-fast photonics applications, nonlinear optical processes or to use as seed laser (like in MOPA configuration).
Features
- Stable performance
- OEM module of benchtop
- Compact size
- Low-cost
Applications
- Research
- Laboratory testing
- Ultrafast spectroscopy
- Nonlinear optics
- Seed laser
Specifications:
| Parameter | Unit | Value |
|---|---|---|
| Centre wavelength | nm | 1520 - 1580 |
| Pulse width | ps.fs | 1 - 200 |
| Bandwidth (FWHM) | nm | 4 - 20 |
| Output power (average) | mW | 2,10,20,50 |
| Pulse rate | MHz | 5 - 200 |
| Output polarization state | - | Linear, random |
| Polarization extinction ratio (PER) | dB | ~ 18 |
| Output termination | - | collimated beam |
| Dimension (OEM) | mm | 65 x 90 x 100 (H x W x L) |
| Dimension (Benchtop) | mm | 115 x 250 x 250 (H x W x L) ) |

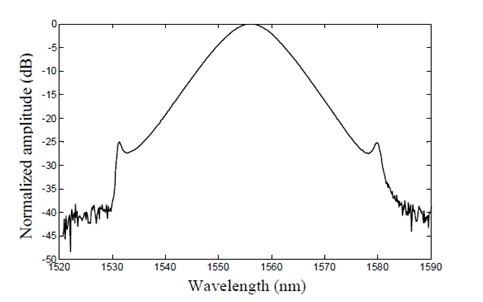

Figure 1: Output spectrum
Figure 1: Output spectrum

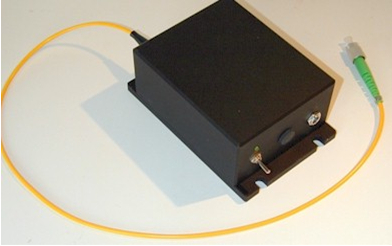

Figure 2: Femtosecond laser
Figure 2: Output spectrum
