Custom Size Ferrules in Zirconia, Stainless Steel and Glass
&
Custom Inner Size Connectors(SMA905 /FC/PC)


Non Standard Size and Custom Size Ferrules in Zirconia Ceramic, Metal and Glass:


Parameter Unit Value
Inner Diameter μm 80 - 1000
Outer Diameter mm 1.0 - 3.15
Length mm 5 - 20
Material - Glass, Zirconia, Stainless Steel, Copper

Figure 1: Different Types of Non-Standard and Custom Size Ferrules(OEPAS-CFC-100) in Ceramic, Metal and Glass

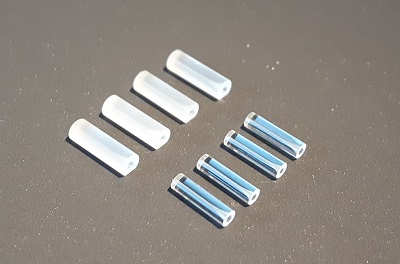

Figure 2: Special type of glass Ferrules

SMA and FC/PC Connectors in Custom Inner Size Zirconia Ceramic Ferrules and Metal Ferrules:


Parameter Unit Value
Inner Diameter μm 80 - 2500
Connector Type - FC/PC, SMA905, ST

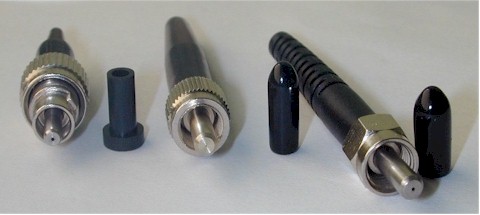

Figure 3: Different Types of Non-Standard and Custom Inner Size Connectors

Note: All specifications are subject to change without notice
