Long Working Distance Lensed Fibre

Using our advanced lensed fibre technology, we can now provide long-working distance lensed fibres with model number OELFP-200 for fibre to LD coupling, fibre to waveguide coupling and for sampling, detection in sensing, medical and biological applications. Compared with our standard lensed fibre product with model number OELFP-100 which has a working distance of less than 10 Ám, OELFP-200 has a focus length of up to 100 Ám. We supply standard and custom made lensed fibre products including wedge lensed fibres, conical lensed fibres and angle polished fibres.

The lensed fibre can also be made with fibre Bragg gratings to do the two things at the same time: stabilize the wavelength and increase the coupling efficiency. We provide the complete solution for pump laser packages with lensed fibre and fibre gratings in the same fiber. For more information on our pump laser stabilizer fibre grating, please visit the pump laser stabilizer fiber grating page.

We also provide other process like AR coating, metallization, connectoriation, ferrule mouting with lensed fibre to help our customer reduce the package cost, increase turn around time and increase product reliability.

Applications:

Features:

OELFP-100 Wedged or Angled Lensed Fibre Specifications:

OELFP-200 Conical Lensed Fibre Specifications:

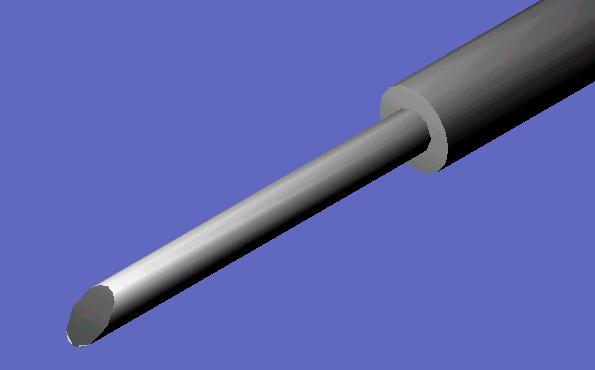

Figure 1: Angle Polished Fibre

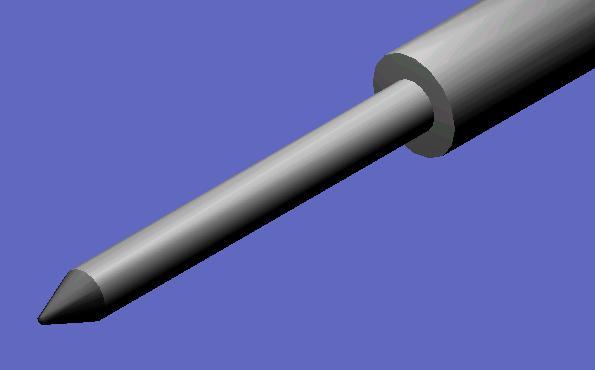

Figure 2: Conical Lensed Fibre

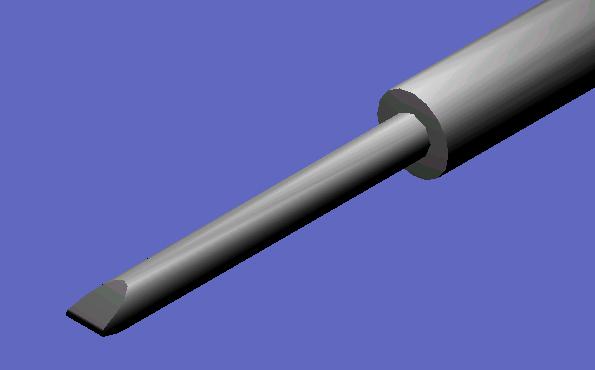

Figure 3: Wedged Fiber

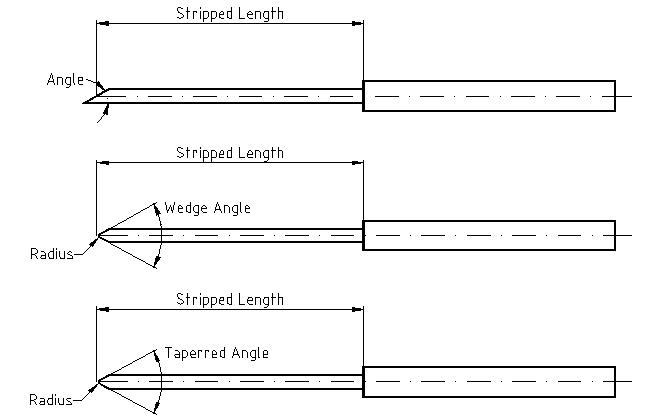

Figure 4: Diagram of the lensed fibre
Figure 4: Diagram of the lensed fibre

For fast delivery please visit our Lensed Fiber Inventory:

Lensed Fiber Inventory

Note: All specifications are subject to change without notice.
